NAVIOM AV-110

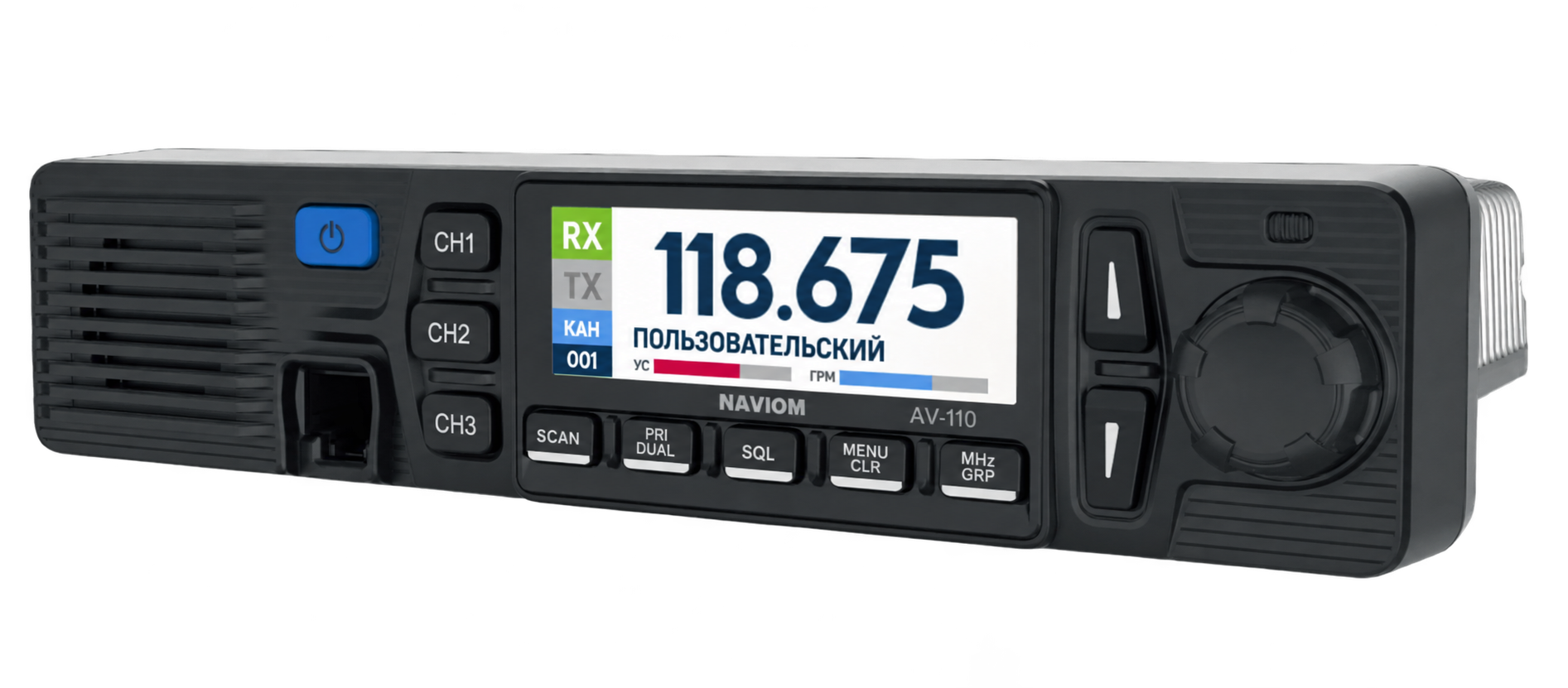

NAVIOM AV-110 aviation VHF radio
Model: AV-110
Price: RUB 160,000
Availability, package contents and delivery time are confirmed with the quotation.
VHF aviation radio for airport ground vehicles monitoring the taxi frequency, small-airfield positions and an agreed aviation task on a drilling platform.
Specifications
| Frequency range | 118.000–136.99166 MHz |
|---|---|
| Channel spacing | 25 / 8.33 kHz |
| Memory | 2,000 channels; GRP groups |
| Carrier power | 9 W |
| Peak envelope power | 36 W PEP |
| Supply | 12 / 24 V DC; 31.5 V maximum |
| Transmit current | 5 A at 13.75 V |
| Current at maximum volume | 4 A at 13.75 V |
| Antenna socket | SO-239; nominal 50 ohms |
| Receiver sensitivity | −101 dBm or better; 12 dB SINAD, CCITT |
| Adjacent-channel selectivity | At least 70 dB at 25 kHz spacing |
| External loudspeaker | 4 ohms; at least 10 W audio at 13.75 V DC |
Channels and the operating position
A Russian-language interface, colour display with automatic brightness, GRP channel groups, three quick-selection buttons, dual watch, priority scanning, adaptive volume and a loud speaker. Carrier power is 9 W; 36 W is peak envelope power. Antenna, cable, external speaker and supply scope are agreed separately.
Documentation
NAVIOM AV-110 technical sheet PDF
