Ground VSAT 1.8m
Set of ground VSAT 1.8 m

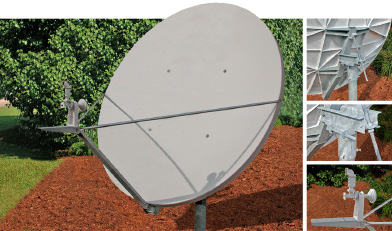

Catalogue photo of Skyware Global from the Type 183 passport. Shown is the antenna and its mounting; it's part of the ground kit. The Kathrein heating system and other delivery positions are not shown in the picture. The iQ Desktop+ modem is shown separately below.
- iQ Desktop+
- BUC + LNB
- antenna 1.8 m
- Support + SIP

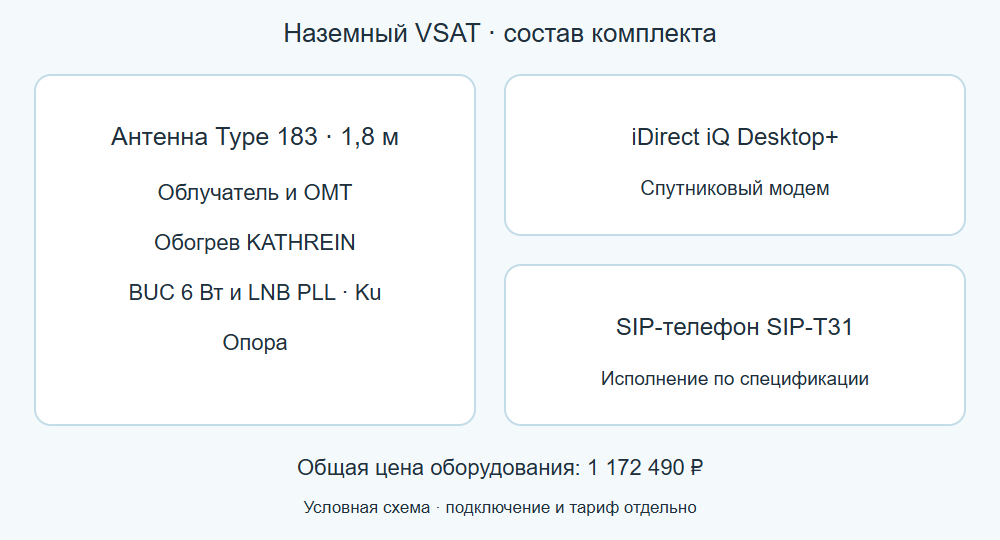

The ground-based VSAT kit includes six items: iDirect iQ Desktop+ modem, BUC 6 W Ku-band, LNB PLL Ku-band, 1.8 m Class III Type 183 antenna with irradiator, OMT and KATHREIN heating system, support and SIP phone SIP-T31. The total price of the kit is indicated. The phone manufacturer and the full component indexes are confirmed in the specification.
Availability and delivery time are confirmed upon order. Connection and tariff separately.

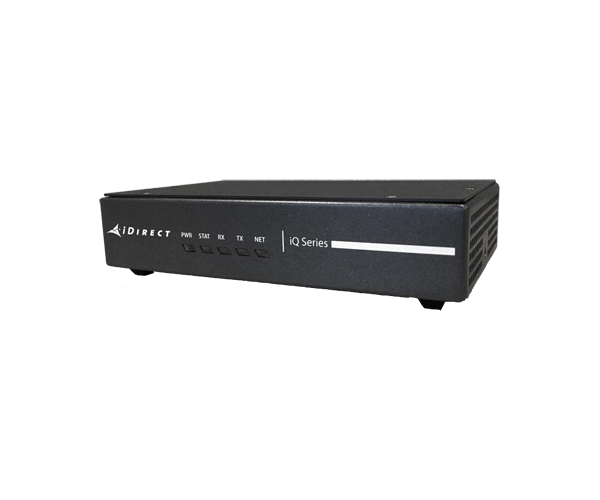

iDirect iQ Desktop+ Modem included in the package
Power supply of the entire working set
For the calculation, the passport data of consumers and the required reserve time are needed. The heating, transmission path and workplace are counted separately; power supply parameters cannot be assigned by antenna diameter alone.
Composition and conditions of the order
The equipment is sold separately from the tariff. Cables, design and installation are included only on an agreed statement.
The cost is for the equipment. Connection and communication services are paid separately at the agreed rate; the terms depend on the network, area of operation, selected speed and composition of the service.
Power supply VSAT: modem, antenna heating and load sheet
